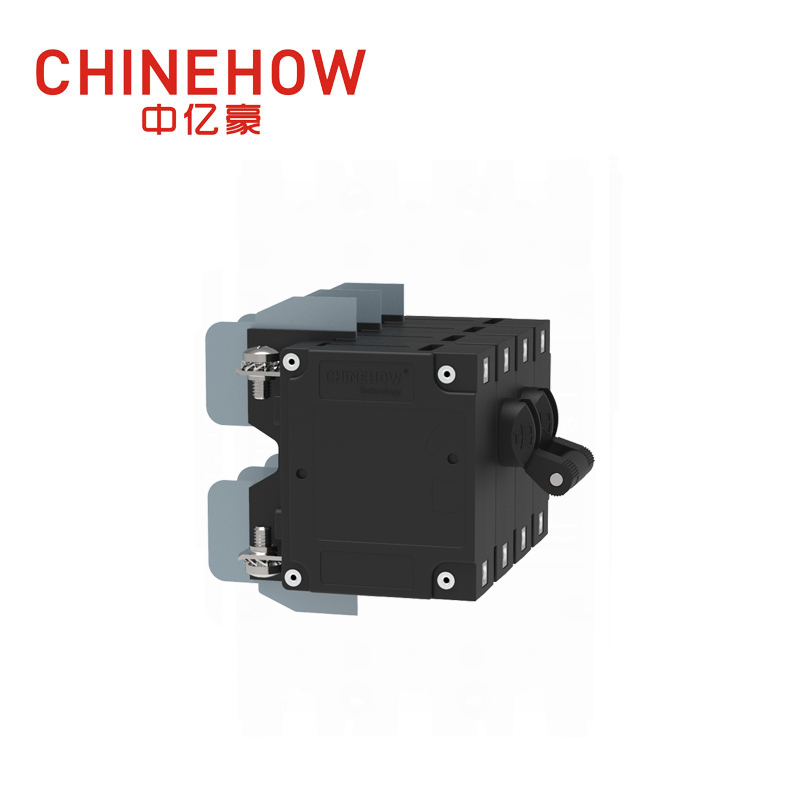

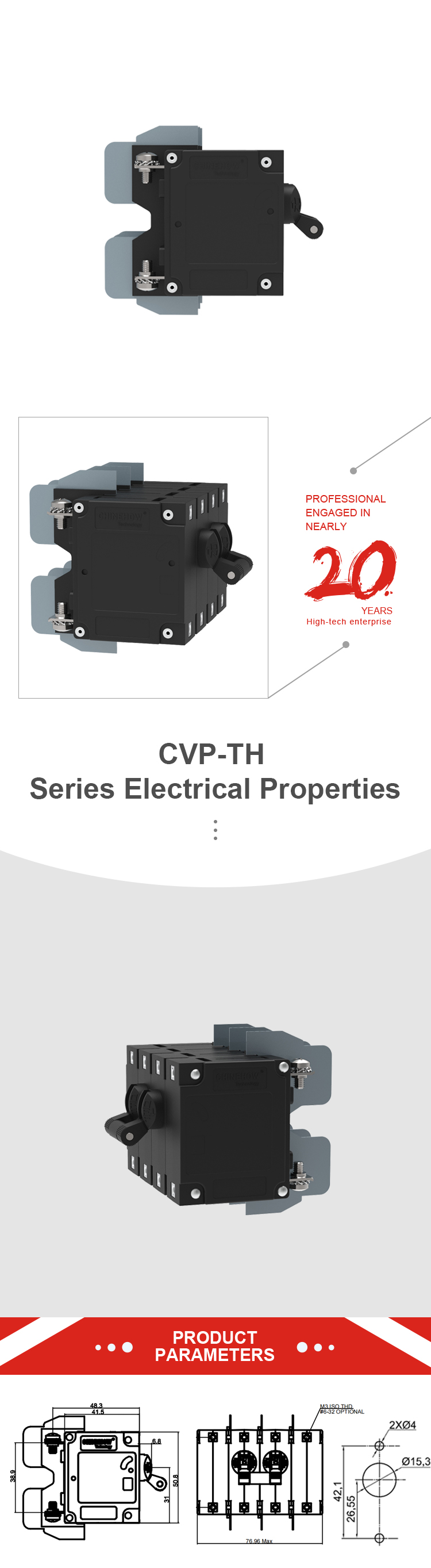

CVP-TH Disyuntor magnético hidráulico Actuador de mango largo de 2 polos con tornillo M4 con orejetas de extremo ascendente 4P

Number of Poles 1,2,3,4 poles (optional)

CURRENT
RATINGS

AC 0.1-50A(1&2&3&4POLES)
DC 0.1-50A(1&2&3&4POLES)

MAXIMUM
VOLTAGE

250V AC,50/60Hz
80V DC

VOLTAGE COIL 6V DC,12V DC;120V AC

AUXILIARY SWITCH
RATING

SPDT;7A,250V AC,7A(Res),28V DC,4A(Ind)0.25A-28V DC,0.1A-125V AC (optional)
INSULATION RESISTANCE ≥100MΩ at 500V DC
DIELECTRIC STRENGTH 1500V,50/60Hz between terminals for eletrical 50/60Hz

RESISTANCE/
IMPEDANCE

The value between line and load terminal under ON status
ENDURANCE Mechanical life is 10k cycles(6 times operation per min.)and electrical life is 6k cycles at rated current and voltage
TRIP-FREE The circuit breaker will tripped inside even if the handle forcibly held in the ON position when overload
TRIP INDICETION Handle is in OFF position when overloaded.For mid-trip,handle is in middle position when overloaded
TEMPERATURE OPERATION -40℃ to +85℃
RECOMMENDED TORQUE #6-32 or M3 mounting inserts 0.8-1.0 Nm; #8-32 or M4 screw terminals 1.4-1.7 Nm; #10-32 or M5 screw terminals 1.7-2.3 Nm; #1/4-20 or M6 screw terminals 3.4-4.0 Nm
MAXIMUM POLES 4 Poles
MOUNTING TYPE Snap-in,screw-in (optional)
TERMINALS Push-in(Q.C) , upturning,screw-in,bus screw-in (optional)
ACTUATOR paddle,baton,push-pull,push to reset button and color,legend can be customized (optional)
COLOR OF CASE black,grey(optional)
STANDARD EN60934,UL1077,GB17701,UL489A
